E - Window Latch Kit - Sub Fix
Window Latch Kit - Sub Fix
Product code: LT1REP
- Sub Fix Handle - refer to the drop down box "Profile" to choose between
- Single or
- Double tongue (venting) handle.
- Packer (- only available in Black)
- 3mm Wedge
- Hole spacing is slightly different : — (old : 32mm—new 30mm).
- Modify one of the holes using a file or drill.
- Discard the hole template from the Packer.
- Fit the Packer to the back of the handle and
- Affix handle to frame with screws provided.
- Replace Wedge with 3mm self adhesive wedge provided.
* Image is of a right hand handle *

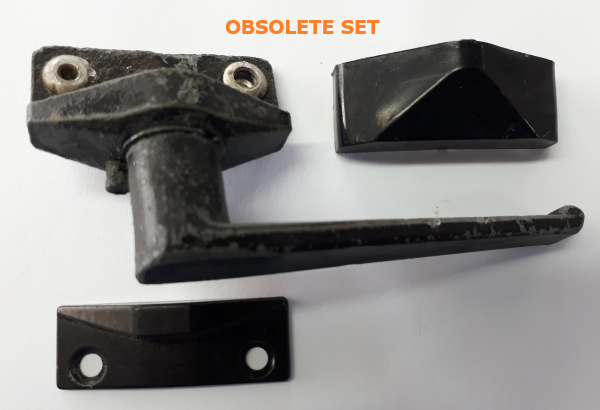

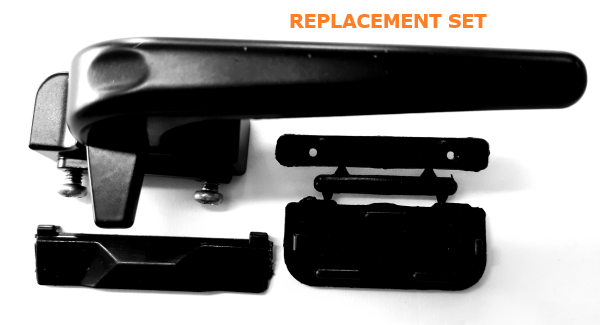

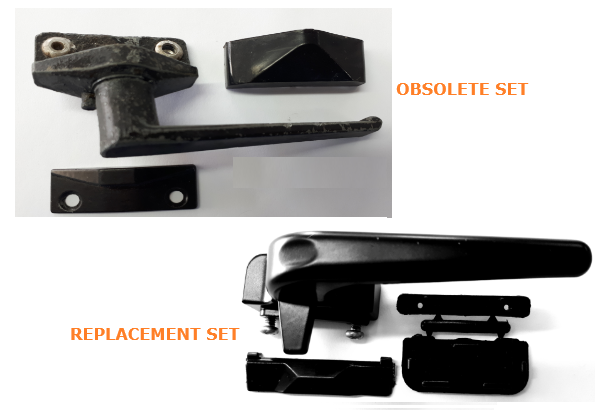

This Kit is the replacement option for the now obsolete Window Latch Kit - Top Fix (LT1)
Kit includes :
NOTE for putting kit together:

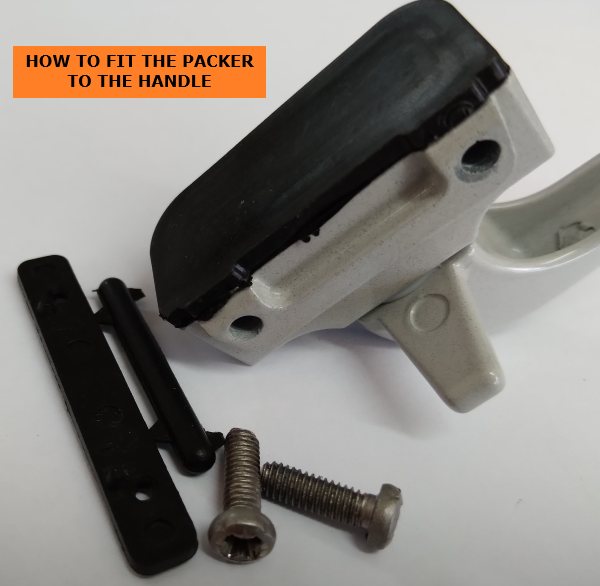

** Refer to the Image Gallery to view how packer is fitted. **
